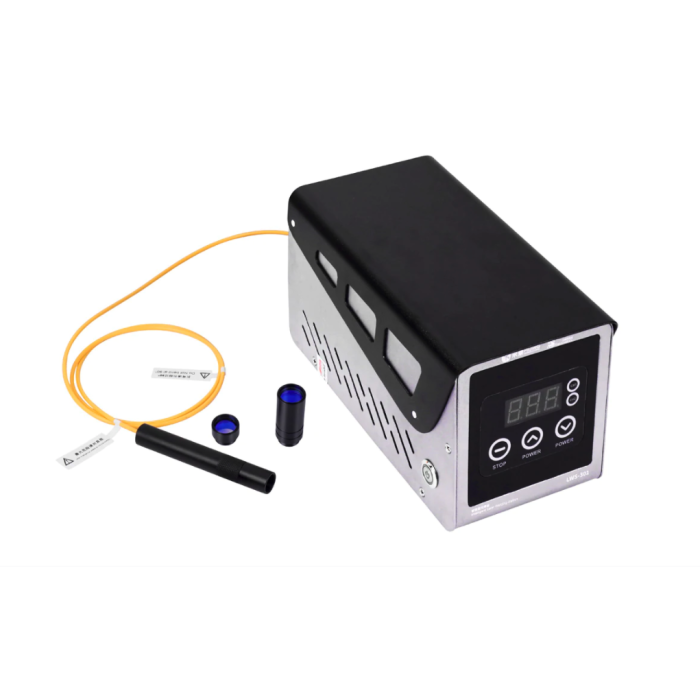

MIJING WLS-301 Laser Soldering Station
-
Latest released smart laser soldering station from Mijing;
-
Perfect match with microscope and micro soldering;
-
12-month warranty from manufacture;
-
No return after order confirmed.
LWS-301 intelligent soldering station is using laser technology to heat electronic components to achieve removal and welding functions. It has the advantages of no wind blowing and fixed area heating and low power consumption compared to the traditional hot air gun soldering station which is special designed for most of the precision capacitor and IC chip removal, glue removal and micro soldering.
Features:
- Precise fixed-area heating and windless heating
- 10 levels of laser tunable and 2 storage channels for fast level switching
- 10mm/6mm optional red light spot position indication
- Pedal switch for sensitive laser heating control
- No burning of solder oil and rosin without blackening
- Fast soldering and flying line, easy glue removal
- Suitable for most electronic components removal and welding machine
Specification:
- Laser power: 15W*2, 10 levels adjustable
- Laser wavelength: 915nm
- Laser spot size: 10mm/6mm
- Cooling method: air cooling
- Power: 220V, 50HZ±5%, EU standard plug
- Machine size: 216*110*129 (mm)
- Packing size: 600*250*200 (mm)
- Package weight: 8KG
FAQ:
Q: Does the laser hurt the eyes?
A: No, it doesn't. Long time use is recommended to use the monitor or wear glasses.
Q: I see harsh light in the video and make my eyes uncomfortable.
A: That's because of the strong light captured by the camera, but invisible to the naked eye.
Q: What is its maximum temperature?
A: Due to the characteristics of the laser, it produces different temperatures for different materials, a test is recommended.
Q: Can it work for all chips or IC?
A: No, it can't. Some chips are sensitive to temperature, it is recommended to use traditional methods.
Q: Can it control the temperature?
A: No, but you can adjust the power level 1-10 to control the heating speed.
Q: Does it need to adjust the focus?
A: No, it doesn't. Suggest effective distance is ≤ 100 mm.
Q: Can I adjust the size of the heating area?
A: Yes, you can change the pen lens, switching between 6mm and 10mm areas.
| Color | Grey |
|---|---|
| Model | Tools |
| Part Category | Electronic Repair Tools |
| Condition | Original |
