Board Repair Mijing Z20 BGA Reballing 10 in 1 Kit for iPhone X-12 Pro Max

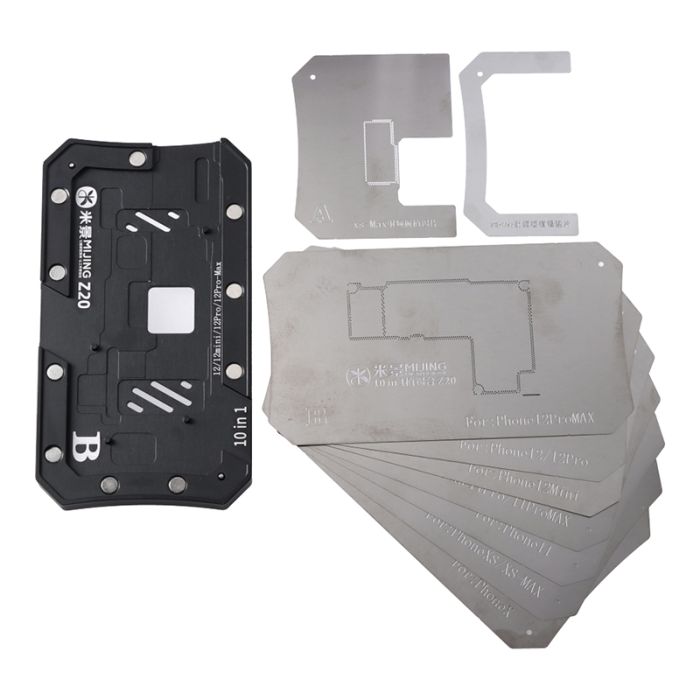

Mijing Z20 10 in 1 BGA Reballing Stencil Platform Jig Fixure is professional BGA Reballing Stencil Fixture for iPhone X/XS/XSMAX/11/11Pro/11ProMax/12mini/12/12pro/12ProMax motherboard BGA reballing fixture tool, is used for positioning and reballing PCB BGA parts, convenient and faster for reballing BGA without any damage, offer you best solution for iPhone X/XS/XSMAX/11/11Pro/11ProMax/12mini/12/12pro/12ProMax.

Usage Steps:

1. Take out the Z20 tin planter and place the bottom plate

2. Place gaskets as needed (when planting tin in the RF middle frame of the XSMax motherboard, you need to place functional functional gaskets and then place the RF dedicated tin planting net)

3. Place the main board and locate it through the positioning column and limit area

4. Place the tin-planting net magnet according to the model to automatically adsorb the positioning hole and align the tin-planting station positioning post

5. Place tin spacers according to requirements

6. Use a tin scraper to evenly fill the mesh with tin paste
